Mainboard ASROCK Z690 Pro RS (DDR4)

Tình trạng: Còn hàng
Lượt xem: 334

(0 đánh giá)

Tóm Tắt Sản Phẩm

Đặc
điểm nổi bật của bộ PC MSCV27
✨ CPU: I7-13700
✨ RAM: 32GB DDR4
✨ SSD: 512GB
✨ Card Đồ Hoạ: RTX 3080 12GB

Bảo hành: 36 Tháng

Mã: MSC-79183 Danh mục:

Giá bán: 4.100.000
Giá niêm yết: 4.150.000
Tiết kiệm: 50.000  (1%)

Hot
Hỗ trợ trả góp 0% qua MPOS (Thẻ tín dụng), HDSAISON (Xem chi tiết)
Hot
Cam kết sản phẩm 100% chính hãng
Hot
Vệ sinh PC miễn phí showroom của MSCshop.vn
Khuyến mại
- Giảm giá trực tiếp khi mua sản phẩm tại MSCShop.vn - Tặng kèm bộ Combo 5 in 1 khi mua kèm màn hình (có thay đổi tùy cấu hình): 🎁 Bàn phím LED 🎁 Chuột Gaming LED 🎁 Tấm PAD Chuột Full Size 🎁 5M Dây Mạng 🎁 Gói bảo hành vệ sinh tại MSC SHOP trong suốt quá trình sử dụng

Giới thiệu sản phẩm

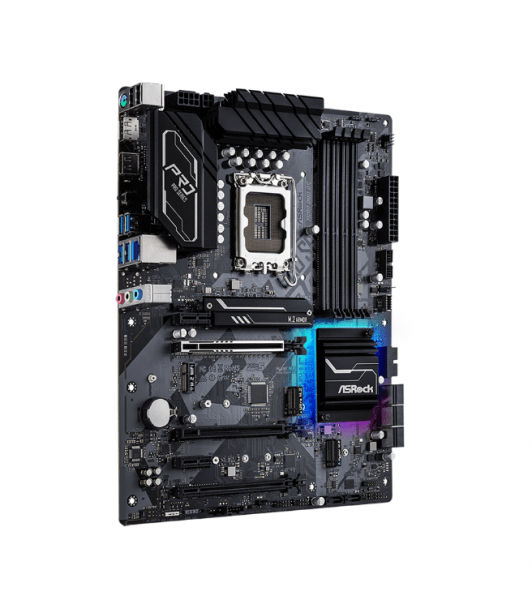

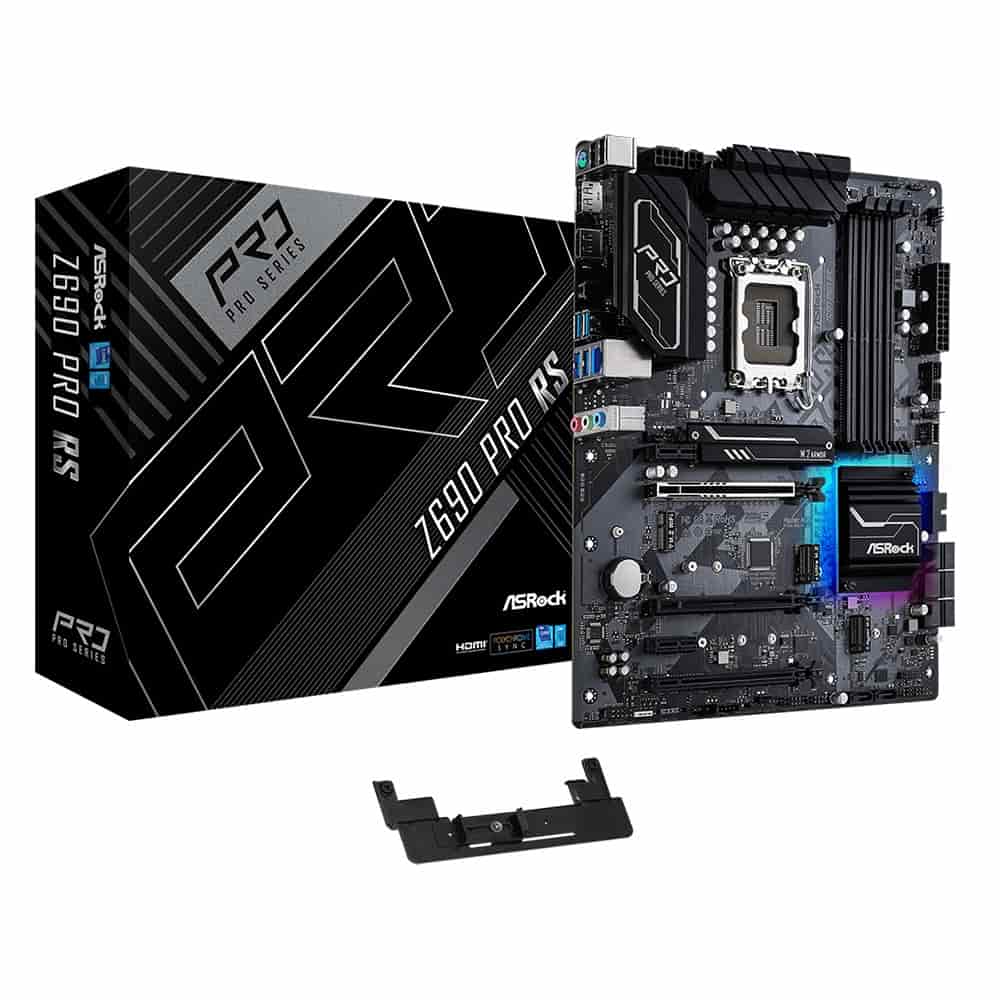

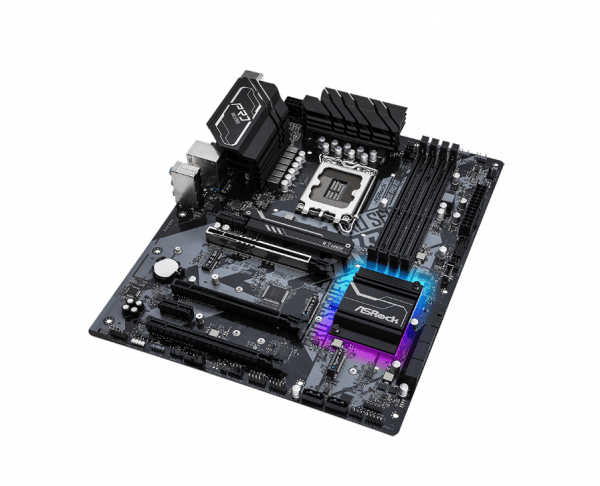

Mainboard ASROCK Z690 Pro RS (DDR4)

Dr.MOS là giải pháp công suất tích hợp được tối ưu hóa cho các ứng dụng điện áp hạ áp đồng bộ! So với MOSFET rời rạc truyền thống, nó cung cấp dòng điện cao hơn một cách thông minh cho mỗi pha, do đó mang lại kết quả nhiệt được cải thiện và hiệu suất vượt trội.

Tiến sĩ MOS

Chính sách bán hàng của MSCSHOP.VN

Công ty TNHH Tin Học MSC là nhà cung cấp các sản phẩm Máy Tính, LapTop , Linh Phụ kiện Máy Tính ... giá cả hợp lý, chất lượng nhất tại Hà Nội, TP.HCM với những những chính sách khi mua hàng:

– Giao hàng nhanh chóng trên toàn quốc (Hình thức giao hàng trước trả tiền sau COD)

– Lắp đặt miễn phí nội thành Hà Nội

– Chúng tôi cam kết Đổi Mới 1-1 cho mọi sản phẩm bị lỗi trong 30 ngày đầu tiên! Đảm bảo theo Chính sách của Hãng và Nhà Phân Phối

– Thanh toán tiện lợi nhanh chóng bằng nhiều hình thức (Tiền mặt, chuyển khoản, trả góp lãi suất 0%)

– Hỗ trợ nhiệu tình với tổng đài tư vấn miễn phí 24/7

Liên hệ ngay với chúng tôi qua Hotline : 0886 886 339 (Zalo) Để được hỗ trợ 24/7

Hỗ trợ Kĩ Thuật : 0886 886 139
Tư Vấn Bán bảo hành : 0886 886 239

Truy cập https://mscshop.vn để được tư vấn và mua những sản phẩm phù hợp nhất.

Đánh giá nhận xét

Thêm đánh giá

Chưa có đánh giá nào.

Thông số kỹ thuật

Thông số kỹ thuật
Unique Feature ASRock USB 3.2 Gen2
– ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
– Premium 60A Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU – Supports 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 13 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset – Intel® Z690
Memory  Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots – 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))*
– 2 x PCIe Gen3x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage – 8 x SATA3 6.0 Gb/s Connectors*
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode**
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

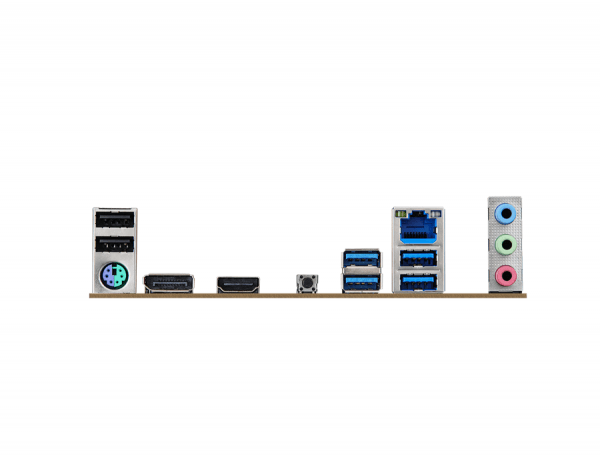

Rear Panel I/O – 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
– 1 x Graphics Card Holder
Hardware Monitor – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– Solid Capacitor design
– 2oz Copper PCB
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
– CEC Tier II ready



Xem đầy đủ thông số kỹ thuật
